Products Home Page > Mechanical water meters > Rotary Wing Wet E Water Meter

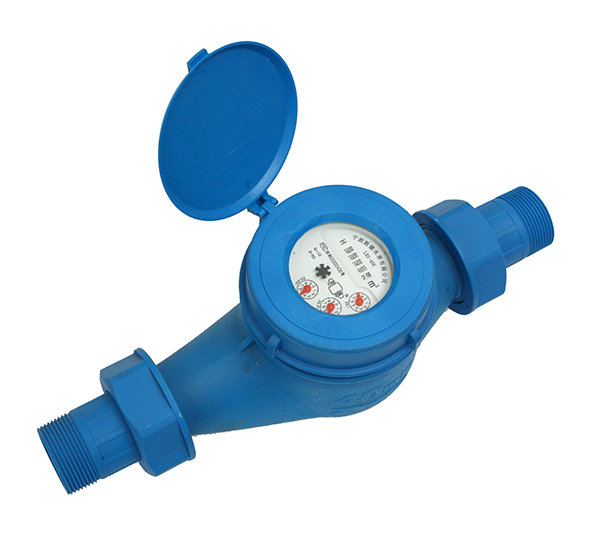

Rotary Wing Wet E Water Meter
  • Rotary Wing Wet E Water Meter
  • Product name:

    Rotary Wing Wet E Water Meter

    Category: Mechanical water meters
    Product model: LXS-40E
Product details

Name: LXS-15E ~ 50E wet cold water meter rotor type

Uses: This series of water meter for household or a resident unit passing through the pipeline measuring the amount of cold water to drink.


Conditions of Use:

Temperature class: T30

Pressure Level: MAP 10 / MAP 16

Pressure loss rating: △ P 63


Indication error limit:

From minimum flow (Q1) to excluding transitional flow (Q2) of the lower zone ± 5%

From the high zone of the transitional flow (Q2) to overload flow (Q4) of cold water ± 2%, ± 3% of hot water


Characteristics and main technical parameters:

More velocity, rotary wing, high accuracy, small starting flow rate, easy to read copy.

Stable and reliable performance, long life, beautiful appearance, water versatile, easy to replace maintenance.

This series of case materials optional copper, iron, stainless steel, aluminum and plastic composites.

Series versatility, easy maintenance and replacement; accurate, durable.


The main technical parameters:

caliberMeasuring rangeTraffic overloadCommon flow Q3Transitional Flow Q2Minimum flow Q1Starting flowThe minimum number ofThe maximum reading
DNQ3/Q1Q4
mmm3/hL/hm3
15803.1252.55031.2560.0000599999
1004025
12532205
1602515.625
208054805010
1006440
12551.2326
1604025
25807.8756.312678.7812
100100.863
12580.6450.48
1606339.375
328012.51020012514
100160100
1251288010
16010062.5
4080201632020040
100256160
125204.812835
160160100
508031.2525500312.570
100400250
12532020060
160250156.25



● flow error curve


● Pressure loss curve


● Dimensions and weight


Nominal diameterlong Lwidth Bhigh HConnection thread (D)weight(kg)
(mm)mm
15165/19099104G3/4B1.5/1.6
20190/19599106G1B1.7
25260/225104120G1 1/4B2.6/2.4
32260/230104120G1 1/2B2.8/2.7
40300/245125155G2B5.4/4.5
50300125155B2 1/2B7.2
280158175Flanged PressGB4216.4.84 D=165 D1=12514



● Conditions of Use

Working temperature no higher than 40oC

Working pressure is less than 1MPa
