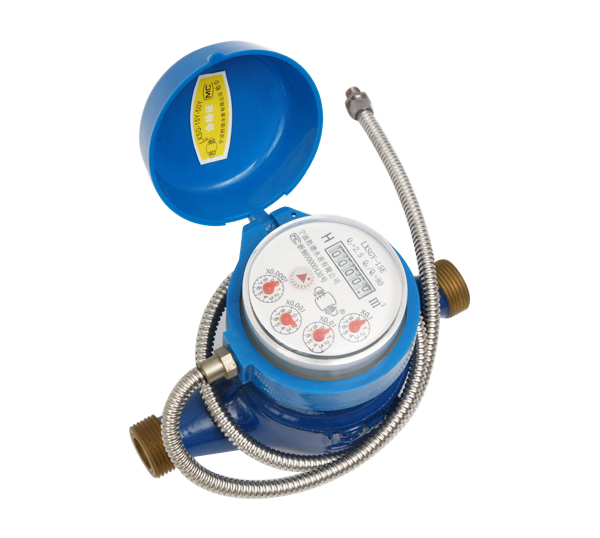

Rotor dry Far EasTone sender table
  • Rotor dry Far EasTone sender table
  • Product name:

    Rotor dry Far EasTone sender table

    Category: Mechanical water meters
    Product model: LXSGY-15Y
Product details

Name: LXS-15Y ~ 50Y Rotary Wing wet cold water meter remote transmitter


Uses: This series of water meter for household or a resident unit passing through the pipeline measuring the amount of cold water to drink, water and long-distance transmission signal to the secondary instrument.


Conditions of Use:

Temperature class: T30

Pressure Level: MAP 10 / MAP 16

Pressure loss rating: △ P 63


Indication error limit:

From minimum flow (Q1) to excluding transitional flow (Q2) of the lower zone ± 5%

From the high zone of the transitional flow (Q2) to overload flow (Q4) of cold water ± 2%, ± 3% of hot water


Characteristics and main technical parameters:

More velocity, rotary wing, high accuracy, small starting flow, copy easy to read, and each stream into 10 liters or 100 liters of water to send a signal.

Stable and reliable performance, long life, beautiful appearance, water versatile, easy to replace maintenance.

This series of case materials optional copper, iron, stainless steel, aluminum and plastic composites.

Series versatility, easy maintenance and replacement; accurate, durable.


The main technical parameters:

caliber DNmmMeasuring rangeTraffic overloadCommon flow Q3Transitional Flow Q2Minimum flow Q1Starting flowMinimum readingThe maximum reading
Q3/Q1Q4
m3/hL/hm3
15803.1252.55031.2560.0000599999
1004025
12532205
1602515.625
208054805010
1006440
12551.2326
1604025
25807.8756.312678.7812
100100.863
12580.6450.48
1606339.375
328012.51020012514
100160100
1251288010
16010062.5
4080201632020040
100256160
125204.812835
160160100
508031.2525500312.570
100400250
12532020060
160250156.25


● flow error curve


● Pressure loss curve


● Dimensions and weight

Nominal diameterlong Lwidth Bhigh HConnection thread (D)weight(kg)
(mm)mm
15165/19099104G3/4B1.5/1.6
20190/19599106G1B1.7
25260/225104120G1 1/4B2.6/2.4
32260/230104120G1 1/2B2.8/2.7
40300/245125155G2B5.4/4.5
50300125155B2 1/2B7.2
280158175Flanged Press GB4216.4.84 D=165 D1=12514


● Installation Requirements

To be washed before installation of water meter pipe; water meter must be installed horizontally, vertical meter must be installed vertically. So that the meter reading side upward, and the flow direction of the arrows in the same direction; meter must be installed in the surrounding environment dry, disassembly, easy repair place, it is recommended to install water meters in a dedicated box. Water meter before and after the valve must be installed.
